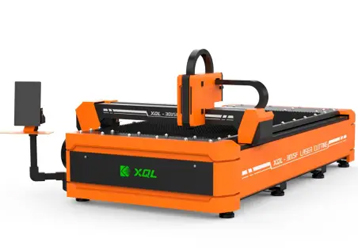

XQL-3015F Industrial Fiber Laser Cutting Machine

Key Features:

1. High-Power Fiber Laser:

   • The XQL-3015F is equipped with a high-power fiber laser source, typically ranging from 1000W to 4000W, which provides exceptional cutting speeds and quality on various metals. The laser delivers high precision with reduced heat-affected zones, making it ideal for thin and thick materials alike.

2. Fast Cutting Speed:

   • This machine achieves high cutting speeds of up to 30 meters per minute, significantly reducing the time needed for production runs, improving productivity, and meeting the demands of high-volume manufacturing.

3. High Precision:

   • The machine provides ±0.03mm positioning accuracy and ±0.01mm repeatability, ensuring precision in every cut. It is perfect for high-accuracy jobs that require detailed cutting, such as fine contours and intricate designs.

4. Wide Material Compatibility:

   • The XQL-3015F can cut a variety of materials including carbon steel, stainless steel, aluminum, brass, and copper with thicknesses ranging from 0.5mm to 25mm for carbon steel, and 0.5mm to 20mm for stainless steel, providing versatility for various industries.

5. CNC Control System:

   • The cutting machine features an advanced CNC control system that allows for easy operation, real-time adjustments, and efficient cutting path optimization. The system also supports various CAD/CAM software to integrate seamlessly with your existing production workflows.

6. Automatic Focusing System:

   • The automatic focusing system adjusts the focus lens based on the thickness of the material being cut, ensuring optimal cut quality. This system enhances efficiency and reduces human intervention.

7. Robust and Durable Construction:

   • Designed with a rigid steel frame and high-quality components, the machine is built for long-lasting performance in demanding industrial environments. The XQL-3015F offers excellent stability during cutting operations, reducing vibration and ensuring consistent results.

8. Cooling and Exhaust System:

   • Equipped with an advanced cooling system to maintain the optimal working temperature of the laser, ensuring consistent cutting performance. The exhaust system efficiently removes smoke and fumes generated during the cutting process, improving safety and work environment quality.

9. Low Operating Cost:

   • The fiber laser cutting technology offers a higher energy efficiency compared to traditional CO2 lasers, reducing operating costs. It also requires low maintenance due to the absence of mirrors or lenses, leading to fewer breakdowns and greater uptime.

10. User-Friendly Interface:

    • The CNC control system is equipped with a touchscreen interface that makes operation intuitive, even for new users. It also offers real-time diagnostic features, which improve ease of use and help troubleshoot any issues that may arise.

---

Technical Specifications:

Feature	Specification
Laser Power	1000W to 4000W
Cutting Area	3000mm x 1500mm (Customizable)
Laser Type	Fiber Laser
Cutting Speed	Up to 30 m/min
Material Thickness (Carbon Steel)	0.5mm to 25mm
Material Thickness (Stainless Steel)	0.5mm to 20mm
Positioning Accuracy	±0.03mm
Repeatability	±0.01mm
Control System	CNC with touchscreen interface
Cooling System	Water-cooling system
Power Supply	380V ± 10%, 50/60Hz
Weight	Varies (depends on configuration)
Gas Used	Nitrogen, Oxygen, Compressed Air

---

Applications:

1. Metal Fabrication:

   • Used in metal fabrication for producing custom metal parts, components, and prototypes. The XQL-3015F provides excellent cutting performance on a variety of metals, from thin stainless steel sheets to thick carbon steel plates.

2. Automotive Industry:

   • Suitable for cutting parts used in the automotive industry, including brackets, body panels, and chassis components, where precision and high-speed cutting are essential.

3. Aerospace:

   • The machine can be used for cutting lightweight aerospace components, where precision and high-quality cuts are critical for manufacturing parts such as engine components and structural pieces.

4. Signage and Advertising:

   • The XQL-3015F can be used in the signage industry to cut metal signs, logos, and other custom designs that require intricate detail and precision.

5. Electronics:

   • Ideal for cutting components used in electronics manufacturing, including heat sinks, circuit boards, and connectors, where high precision is necessary.

6. Construction and Metalworking:

   • The machine can be used in construction for producing structural beams, reinforcements, and metal panels used in building and infrastructure projects.

7. Shipbuilding:

   • Effective in cutting steel plates and other metals used in shipbuilding, where both speed and precision are required for cutting large, thick metal plates.

8. Sheet Metal Processing:

   • Perfect for sheet metal processing where large volumes of metal sheets need to be cut quickly and accurately for various applications.

---

Benefits of the XQL-3015F Industrial Fiber Laser Cutting Machine:

• High Cutting Speed: Achieves fast cutting speeds while maintaining high-quality cuts, reducing production time.
• Versatility: Suitable for a wide range of materials and thicknesses, making it highly adaptable for various industries.
• Precision and Accuracy: Offers excellent cutting precision, ideal for applications requiring fine details and intricate shapes.
• Energy Efficient: The fiber laser technology consumes less energy than traditional CO2 lasers, lowering operational costs.
• Low Maintenance: Requires less maintenance due to fewer moving parts and no need for regular mirror alignments.
• Durable: Built for industrial environments with a robust design that ensures reliable long-term performance.
• User-Friendly: Equipped with an easy-to-use touchscreen interface and advanced control system for seamless operation.
