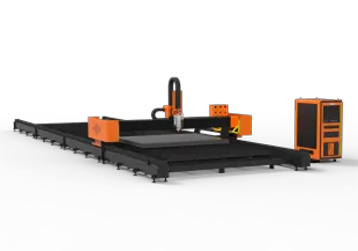

X13032AE Laser Hybrid Cutting Machine

Key Features:

1. Hybrid Cutting Technology:

   • The X13032AE integrates fiber laser and plasma cutting technologies in one machine. This allows for the combined benefits of high-speed laser cutting for thin materials and plasma cutting for thick materials, offering a versatile cutting solution for a wide range of materials and thicknesses.

2. Dual Cutting Capabilities:

   • Laser Cutting: Ideal for thin sheets (up to 25mm for carbon steel, 20mm for stainless steel) and precision cutting with high-speed, fine details.
   • Plasma Cutting: Best for thicker materials, such as up to 80mm for carbon steel, ensuring smooth cuts and reduced heat-affected zones on heavy plates.

3. High-Powered Fiber Laser Source:

   • Equipped with a high-power fiber laser (up to 6kW or more), the machine provides fast cutting speeds and high precision on thin metal sheets and complex geometries, all while maintaining low energy consumption compared to traditional CO2 lasers.

4. Plasma Cutting Torch:

   • Plasma cutting technology is used for thicker materials (e.g., carbon steel up to 80mm), providing clean cuts at a lower cost than laser cutting. The hybrid design allows the machine to switch between the two technologies seamlessly based on material thickness and cutting requirements.

5. High Precision and Cutting Speed:

   • The machine delivers ±0.03mm positioning accuracy, ensuring precise cuts. With high cutting speed capabilities, the system minimizes production time and improves overall workflow.

6. Advanced CNC Control System:

   • The CNC control system features advanced software, allowing for easy operation, automatic cutting path optimization, and a user-friendly interface. The control system ensures that both laser and plasma cutting operations are accurately managed.

7. Versatility for Multiple Applications:

   • The hybrid cutting system allows for a variety of applications across industries, including automotive, aerospace, energy, shipbuilding, and metal fabrication. The machine can handle a wide range of materials, from thin stainless steel to thick carbon steel.

8. Heavy-Duty Construction:

   • Built for industrial-grade operations, the X13032AE features a rigid frame and strong foundation, minimizing vibrations and ensuring cutting stability for both laser and plasma cutting processes.

9. Automatic Height Control:

   • The system includes automatic height control to maintain the optimal focus distance between the cutting nozzle and the material surface, ensuring consistent cutting quality, especially for thicker materials.

10. Low Operating Cost:

    • The hybrid cutting method combines the high efficiency of fiber laser with the cost-effective nature of plasma cutting, significantly reducing the overall operating cost, especially for thicker materials.

Technical Specifications:

Applications:

1. Heavy Metal Fabrication:

   • Perfect for cutting thick metal plates, beams, and structural components for industrial projects. The machine’s hybrid technology makes it an excellent tool for cutting both thick and thin materials in a single setup.

2. Automotive Industry:

   • The hybrid cutting system is ideal for automotive parts production, where both thin sheet cutting and thick metal processing are required for parts such as chassis, brackets, and engine components.

3. Shipbuilding:

   • In shipbuilding, where large, thick steel plates are common, the plasma cutting capability is perfect for cutting thick materials, while the fiber laser handles the intricate designs.

4. Metal Fabrication:

   • Perfect for general metal fabrication shops that need to handle a variety of materials and thicknesses, from thin stainless steel sheets to thick carbon steel plates.

5. Energy Sector:

   • Cutting complex parts used in the power generation sector, including turbines, piping systems, and heavy-duty industrial components that require high precision and speed.

6. Construction:

   • The machine can cut structural steel for construction projects, where fast cutting and precision are needed for parts like beams, columns, and brackets.

7. Signage & Advertising:

   • Cutting metal signage or creating metal panels for commercial advertising and branding purposes, where fine, detailed cuts are essential.

8. Aerospace:

   • Used for aerospace parts cutting, particularly for thick aluminum and other materials used in aircraft components, where accuracy and speed are critical.

Benefits of the X13032AE Laser Hybrid Cutting Machine:

• Enhanced Cutting Efficiency:

  • The combination of fiber laser and plasma cutting technologies provides fast and efficient cutting for both thin and thick materials.

• Cost-Effective:

  • By using plasma cutting for thicker materials, the overall cost per cut is reduced, making the machine more economical for heavy-duty applications.

• Precision and Speed:

  • With fiber laser cutting, you get high precision on thin sheets, while plasma cutting ensures quick and effective cuts for heavy plates.

• Versatility:

  • The hybrid design allows the machine to be used in a variety of industries with differing needs, from automotive to energy and metal fabrication.

• Low Maintenance:

  • Minimal maintenance is required due to the durability of both the fiber laser and plasma components, ensuring lower downtime and higher productivity.

• Improved Workflow:

  • The combination of both cutting technologies reduces the need for multiple machines, improving workflow and production efficiency.
