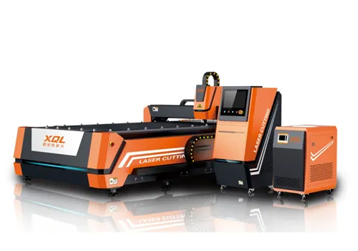

X3015AE Industrial Fiber Laser Cutting Machine

Key Features:

1. High-Power Fiber Laser Source:

   • The X3015AE is equipped with a fiber laser source ranging from 1000W to 3000W, ensuring fast cutting speeds and high cutting quality. The fiber laser provides high energy efficiency and lower maintenance costs compared to traditional CO2 lasers.

2. Fast Cutting Speed:

   • This machine offers cutting speeds of up to 30 meters per minute, which significantly increases productivity and reduces lead times in manufacturing processes.

3. Precision and Accuracy:

   • The X3015AE delivers ±0.03mm positioning accuracy and ±0.01mm repeatability, ensuring that every cut is precise and consistent, even on intricate designs and detailed contours.

4. Wide Material Compatibility:

   • The machine is capable of cutting a variety of materials, including carbon steel, stainless steel, aluminum, brass, copper, and more. The cutting thickness varies based on the material type, with carbon steel up to 20mm, stainless steel up to 15mm, and aluminum up to 8mm.

5. Advanced CNC Control System:

   • The X3015AE features a high-performance CNC control system that supports automatic cutting path optimization and integration with CAD/CAM software. This ensures smooth operation, real-time adjustments, and high-efficiency processing.

6. High Precision and Cutting Quality:

   • The fiber laser provides high-quality cuts, with minimal heat-affected zones and excellent edge quality. The automatic focus system ensures that the laser focus is always optimized for the material thickness, enhancing cutting quality.

7. Low Operating Costs:

   • The X3015AE is highly energy-efficient, consuming less power than traditional lasers, and requiring minimal maintenance, reducing the overall operational costs and improving cost-efficiency for long-term use.

8. Cooling and Exhaust Systems:

   • The machine is equipped with an efficient cooling system to keep the fiber laser source at optimal temperature, preventing overheating. Additionally, the exhaust system removes fumes and smoke generated during the cutting process, ensuring a cleaner work environment.

9. Rigid Structure and Stability:

   • Built with a high-strength steel frame, the X3015AE minimizes vibrations during operation, ensuring cutting stability and high-quality results. Its robust construction is designed for industrial environments, providing long-term durability.

10. User-Friendly Interface:

    • The CNC control system features an intuitive touchscreen interface, making it easy for operators to navigate through settings, load cutting programs, and monitor machine performance.

Technical Specifications:

Feature	Specification
Laser Power	1000W to 3000W
Cutting Area	3000mm x 1500mm (Customizable)
Laser Type	Fiber Laser
Cutting Speed	Up to 30 m/min
Material Thickness (Carbon Steel)	0.5mm to 20mm
Material Thickness (Stainless Steel)	0.5mm to 15mm
Material Thickness (Aluminum)	Up to 8mm
Positioning Accuracy	±0.03mm
Repeatability	±0.01mm
Control System	CNC with touchscreen interface
Cooling System	Water-cooling system
Power Supply	380V ± 10%, 50/60Hz
Weight	Varies (depends on configuration)
Gas Used	Nitrogen, Oxygen, Compressed Air

Applications:

1. Metal Fabrication:

   • The X3015AE is highly effective in metal fabrication shops, where it is used for cutting custom parts, components, and prototypes from a variety of metal sheets.

2. Automotive Industry:

   • The machine is perfect for cutting parts used in the automotive industry, including chassis, brackets, and body panels, where high-speed and high-precision cutting is essential.

3. Aerospace:

   • It is used for cutting lightweight and high-strength materials in the aerospace sector, including parts such as engine components, frames, and other critical components where precision is key.

4. Electronics:

   • The X3015AE is ideal for cutting electronics parts, such as heat sinks, circuit boards, and other components that require clean and precise cuts.

5. Construction and Structural Steel:

   • The machine is used in construction for cutting structural steel beams, plates, and reinforcements, where both speed and accuracy are essential.

6. Signage and Advertising:

   • Perfect for cutting metal signs, logos, and advertising panels in the signage industry, where intricate shapes and detailed cuts are often required.

7. Shipbuilding:

   • It is used in shipbuilding to cut large and thick steel plates, making it suitable for producing parts like hull sections, engine components, and other ship parts.

8. Sheet Metal Processing:

   • The X3015AE is used in sheet metal processing for high-precision cutting, which is necessary for a wide range of industries that require metal sheets to be cut into various shapes.

Benefits of the X3015AE Industrial Fiber Laser Cutting Machine:

• High-Speed Cutting: Achieves fast cutting speeds, significantly increasing productivity and reducing production times.
• Precision and Accuracy: Provides ±0.03mm positioning accuracy and ±0.01mm repeatability, ensuring high precision in cutting intricate designs.
• Versatile Material Compatibility: Suitable for cutting a wide range of materials, including carbon steel, stainless steel, aluminum, and other metals.
• Energy Efficient: Fiber laser technology offers significant energy savings over traditional CO2 lasers, reducing operational costs.
• Low Maintenance: The machine requires minimal maintenance due to its fiber laser technology, which has fewer components that need regular attention.
• User-Friendly: With its touchscreen control interface and CNC control system, the machine is easy to operate, even for new users.
• Durable and Robust: Built with a rigid frame, the X3015AE ensures long-lasting performance and reliability in demanding industrial environments.
